The department of Biophysical Chemistry has been established in 2000 by Prof. Wolfgang Lubitz after his appointment as a director of the Max Planck Institute for Bioinorganic Chemistry, formerly Radiation Chemistry, which in 2012 was renamed Max Planck Institute for Chemical Energy Conversion (MPI-CEC). At present there are approximately 30 scientists, postdocs, doctoral students and technicians working in the department. Five research groups, each headed by a group leader, are working on specific topics (scheme 1).

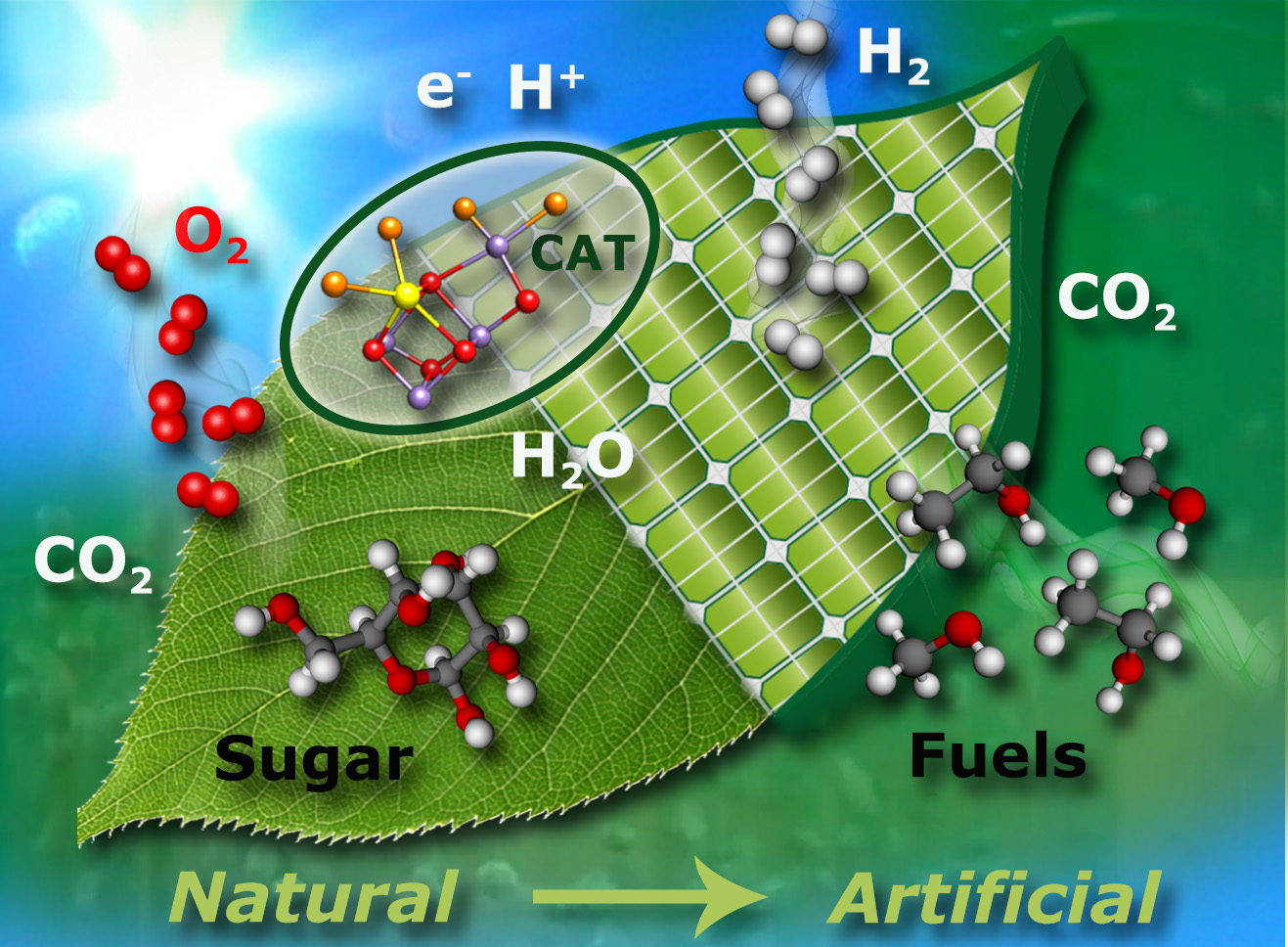

“Artificial photosynthesis”, the concept that is explored in the department, is illustrated in Figure 1. More specifically, we are studying native systems (enzymes) to understand the ingenious concepts of Nature with the aim to use this knowledge to design and synthesize chemical systems for efficient light energy capturing, energy conversion and storage in chemical compounds. In this broad research field we are focusing on two biological systems that contain complex transition metal catalysts in their active sites: i) the water oxidizing complex (WOC) - or oxygen evolving complex (OEC) - of oxygenic photosynthesis; and ii) hydrogenases that produce or convert molecular hydrogen. We use a variety of different physical techniques to study these systems, including X-ray crystallography, X-ray spectroscopy, Mössbauer spectroscopy, magnetic resonance (EPR/NMR), optical and vibrational spectroscopy as well as electrochemistry. Particular emphasis is placed on characterizing the magnetic properties of the metal sites and their ligand sphere, for which advanced electron paramagnetic resonance (EPR) techniques are employed. Most of the investigated systems are prepared in-house, allowing sample optimization and modification in an efficient way. The information obtained from such spectroscopies is supplemented by modern quantum chemical approaches, with the aim of understanding the catalytic function at the atomic level (cooperation with Dr. Pantazis, Molecular Theory and Spectroscopy Department of Prof. Neese). In this way, insight into enzymatic water splitting and hydrogen production and consumption in Nature has been obtained, providing new and important design criteria for synthetic bioinspired catalysts for energy conversion (cooperation with the Department Schlögl, Heterogeneous Catalysis). Our recent work has been summarized in overview articles on water oxidation [1-3] and hydrogenases [4].

Instrumentation and Methodologies

A central mission of our department is the development of new instrumentation, methodologies and experimental techniques. In this endeavor we are closely working together with the technicians, engineers and the excellent workshops of the institute. We are recognized as a center for multifrequency EPR and related spectroscopies. The 8 major instrumental EPR stations (Scheme 2) span the microwave frequency range from 2 to 244 GHz at fields between 0 and 12 T, operating in both CW and pulse mode configurations and at temperatures from 1.5 K to significantly above room temperature. To become independent of liquid helium supply we have started to replace all cryostats (for sample cooling) and high field magnets with cryogen-free systems. Accessories for additional MW channels and RF (NMR) irradiation for multiple resonance experiments are available as well as an arbitrary wave form generator (AWG) for pulse shaping and multifrequency MW pulse sequences. Furthermore we are building our own probe heads (MW resonators) adapted to specific applications. Most instruments allow in-situ laser irradiation for studying light-dependent processes. Short-lived paramagnetic species can be studied down to lifetimes of a few nanoseconds. Recently high pressure equipment has been set up that allows high field EPR experiments to be performed at up to 2.5 kbar (4 kbar peak).

These developments in the MPI together with improvements in related microwave technology and data acquisition have led to a substantial increase in the sensitivity and stability of the EPR measurements. This has dramatically expanded the array of chemical systems that can be characterized using EPR techniques, including large protein supercomplexes with multiple paramagnetic centers, fast relaxing spin systems such as transition metal complexes and related materials, species with higher spin states and samples with constrained dimensions, e.g. small single crystals - to name only a few. EPR experiments on single crystals are of particular importance; in the department we are therefore running a crystal growth laboratory. Using microresonators we are now able to investigate very small single crystals with volumes of only a few nanoliters. Short-lived intermediates in reaction cycles (lifetimes of a few milliseconds) can be trapped by a recently implemented rapid freeze-quench system developed in our laboratory. This has been successfully employed for trapping several intermediates (S-states) in the light-driven water splitting clockwork of PS II using laser excitation combined with fast injection of ¹⁷O labeled water in the catalytic cycle (Kutin/Cox et al., to be published).

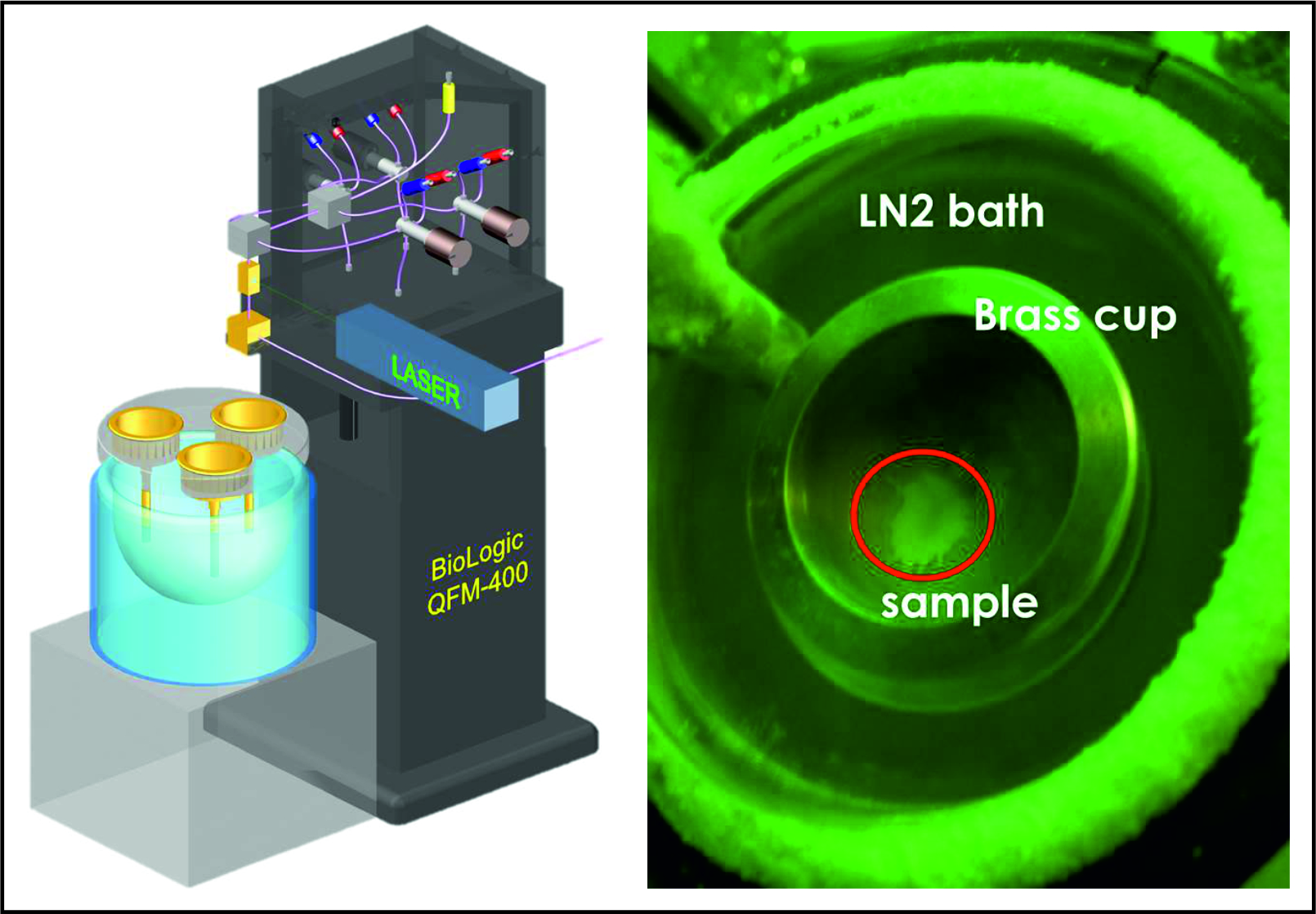

Another important recent development is the construction of a chemical reactor engineered inside an EPR resonator, allowing the in situ real time detection of the active species in a reaction using a heterogeneous catalyst. This station is combined with analytic gas analysis of the reaction products [5].

Particular emphasis is placed in our EPR laboratory on methods that are able to resolve the electron-nuclear hyperfine couplings between the electron spin and the nuclear spin(s) that are delivering a map of the spin density distribution of the system – unique information that is only available by advanced EPR methods. Next to the more established techniques, electron spin echo modulation (ESEEM) and electron-nuclear double resonance (ENDOR), we have developed and used electron-electron double resonance- (ELDOR) detected NMR (EDNMR) at a range of mw frequencies together with simulation software. In this way even for magnetic nuclei with high nuclear spin like ⁶¹Ni, ⁵⁵Mn, ¹⁷O and ¹⁴N the hfcs could be measured in complex metallobiomolecules with excellent sensitivity. The methodology has been described in recent articles by our group [6-8].

During the last two years we have started to use NMR techniques to determine the structure of metalloproteins in solution. First results have been obtained and published on the ferredoxin (petF) from a green algae that acts as shuttle between the photosynthetic electron transport and other proteins, e.g. hydrogenase (producing hydrogen) [9]. In a subsequent publication we were able to determine a much more complete NMR structure by substituting the paramagnetic iron ions in the [2Fe-2S] cluster in petF by two gallium ions, that are diamagnetic [10]. Very recently we have also started to use paramagnetic NMR to study the active site of various genetically modified and/or labeled, artificially matured [FeFe] hydrogenases (Rumpel et al., to be published).

In recent years we have expanded our activities to obtain also vibrational data that often allow detection of all intermediates in a reaction cycle. For hydrogenase and also photosynthesis research FTIR techniques are very important. We have set up two instruments for experiments covering a wide temperature range (4K to 350K) with light access of the cryostat to follow photoinduced reactions. An ATR (attenuated total reflection) cell for surface IR experiments is also available. Spectroelectrochemistry can be performed in an optical transparent thin layer electrochemical (OTTLE) cell. A similar cell is also used for UV-VIS detection of redox processes for which we have a separate instrument. Furthermore time resolved FTIR experiments are possible in step-scan mode performed on our second FTIR instrument. Another smaller FTIR instrument is placed in a glove box for surface enhanced infrared absorption (SEIRA) spectroscopy in combination with electrochemical control. In the department of Frank Neese a sensitive new Raman instrument has been built that will be used for joint Resonance Raman (RR) experiments. Vibrational data have also been obtained using inelastic Mössbauer scattering (nuclear resonance vibrational spectroscopy, NRVS) in cooperation with Stephen Cramer (UC Davis) on a synchrotron using respective monochromators (<1 meV resolution) at the beamline [11, 12]. This technique allows detection of vibrations that are often not accessible by FTIR or RR, e.g. of metal-hydrides in larger proteins. In the optical regime a new sensitive MCD instrument is available in the Neese Department that we are using together with Eckhard Bill with whom we are also collaborating on Mössbauer spectroscopy [13]. X ray absorption (XAS) and emission (XES) experiments have been started together with Serena DeBeer in the MPI [14].

As mentioned above the extension of our electrochemistry facility has made great progress during the last 3 years. Next to the classical techniques (cyclic voltammetry, coulometry, spectroelectrochemistry etc.) protein film electrochemistry (PFE) can now be performed routinely under controlled environmental conditions in two glove boxes equipped with gas mixers. Furthermore, we have successfully started to perform advanced EPR experiments on electrodes to follow the paramagnetic species and their conversion in the investigated processes (“electrochemical EPR”). This is particularly important for the detection of species (catalysts) on surfaces and embedded in polymer matrices [15-17].

In close collaboration with the Department of Prof. Neese, DFT and ab initio calculations are being performed to relate measured spectroscopic parameters to structure and obtain reliable, unified electronic and geometrical structural models, for example of catalytic intermediates, important for the elucidation of reaction mechanisms, see [11, 18, 19].

Collaborations within the MPI CEC, the Mülheim Chemistry Campus and with Neighboring Universities

Between our Biophysical Chemistry Department and the Molecular Theory and Spectroscopy Department of Frank Neese exist very close and successful ongoing collaborations both for the water oxidation project and the hydrogenases, which is demonstrated by a large number of joint publications. Water oxidation is studied with spectroscopic techniques (Dr. N. Cox) and theoretical methods (Dr. D. Pantazis); the joint effort has led to an atomic level understanding of the structure and the structural changes of the water splitting unit, including an assignment of oxidation and spin states of the individual manganese ions in each of its metastable transition states, as well as an assignment of the sites of substrate water binding, the process of O-O bond formation and O2 release [1-3, 18-20]. Collaboration with Dr. M. van Gastel has led to a significant advancement in the understanding of the structure and function of the catalytic site in [NiFe] hydrogenases [21]. Together with Dr. E. Bill, new important information using Mössbauer and EPR spectroscopy has been obtained for the regulatory hydrogenase, a sensor protein [13]. The work has been complimented by XAS and XES measurements on [NiFe] model systems with Prof. S. DeBeer [14]. With Dr. T. Weyhermüller we are collaborating to synthesize model systems both for water oxidation (manganese clusters) and particularly for hydrogen production [22]. Together with the recent ultra-high resolution crystallographic studies in our department [23] a near complete understanding of the [NiFe] hydrogenase catalytic cycle is within reach.

With the Department Schlögl Heterogeneous Catalysis we have started to set up EPR experiments to detect paramagnetic species in photocatalysis. A close collaboration in a joint project on manganese clusters on surfaces and in solution has been established within the BMBF project “Verbundvorhaben MANGAN” (principal investigators: S. DeBeer, N. Cox, D. Pantazis, A. Knop-Gericke). With Dr. S. Becker’s group functionalized carbon nanotubes for MnO electrocatalysis have been investigated with EPR. With the independent research group leader Dr. Jennifer Strunk (MPI CEC/Universität Duisburg/Essen) an EPR characterization of surface doped TiO2 particles for photocatalysis has been performed.

With the neighboring MPI für Kohlenforschung we have an ongoing collaboration with Dr. C. Farès to obtain protein structures in solution using NMR techniques [9, 10]. We have also initiated a project with Prof. F. Schüth/Dr. Ryan Wang on in situ EPR detection of the catalytically active sites in CuO/CeO2 for the preferential gas phase oxidation of CO to CO2 [5]. This novel technique is highly interesting also for other similar catalytic reactions, e.g. the water-gas shift reaction that is currently under study.  Within the Cluster of Excellence (RU Bochum) we are also collaborating with the theory group of Prof. W. Thiel on protein dynamics including the solvent shell (QM/MM) [24].

Since 2012 Prof. W. Lubitz is PI in the Cluster of Excellence “RESOLV”

Hydrogenases

Hydrogenases are Nature´s catalysts for the oxidation of molecular hydrogen or the reverse reaction, the production of H₂ from protons. A basic understanding of the structure, function and dynamics of this class of enzymes is of key importance for a future biologically based hydrogen production technology and for the design and synthesis of bioinspired model systems for hydrogen conversion or production catalysis. In our department both the [NiFe] and the [FeFe] hydrogenases are studied along with appropriate model systems in a combined effort of different groups and by applying a broad range of physical techniques.

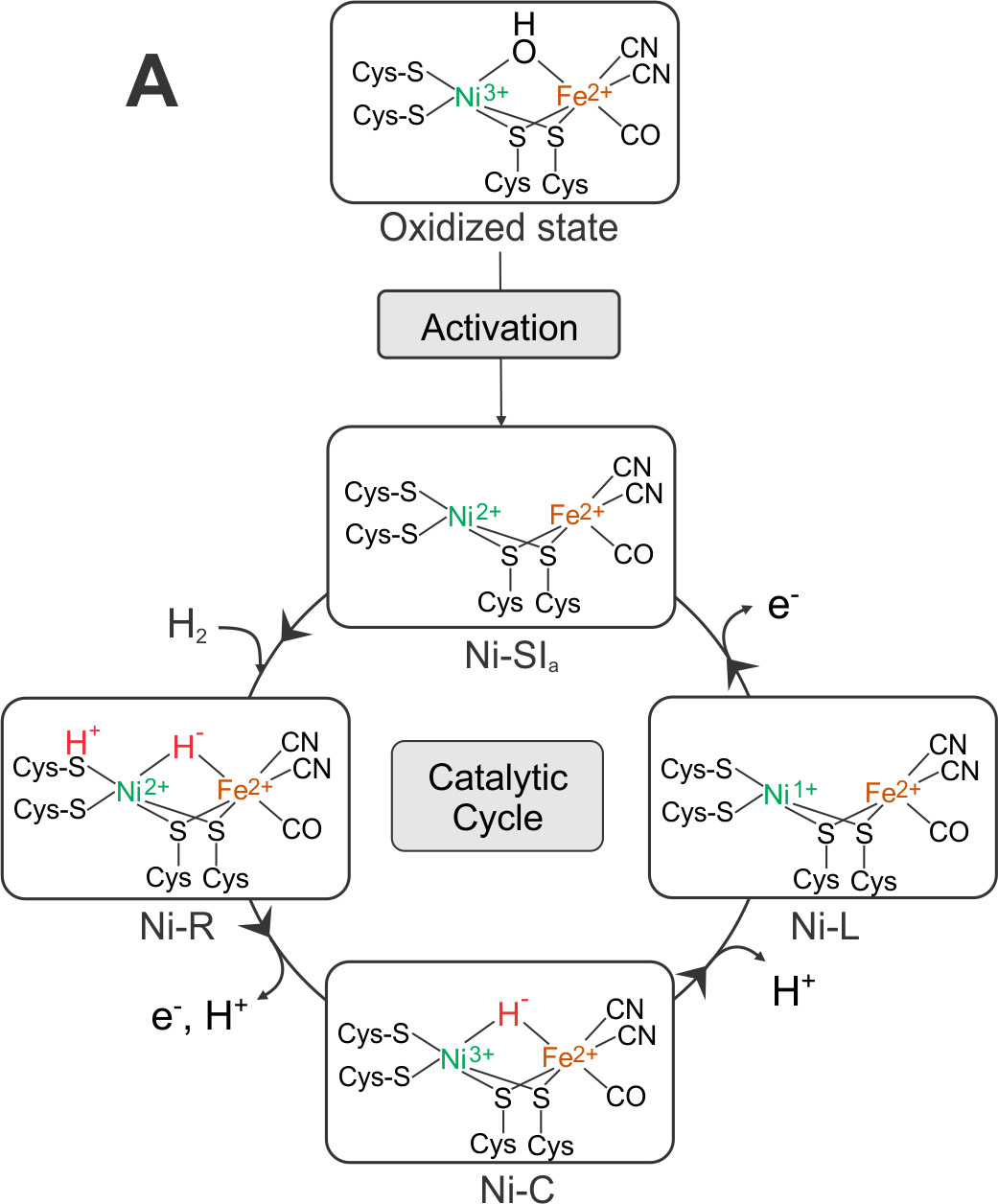

[NiFe] Hydrogenase: During the last 3 years the structures of all intermediates in the activation path and catalytic cycle of [NiFe] hydrogenases were finally resolved. The result is shown in Figure 3.

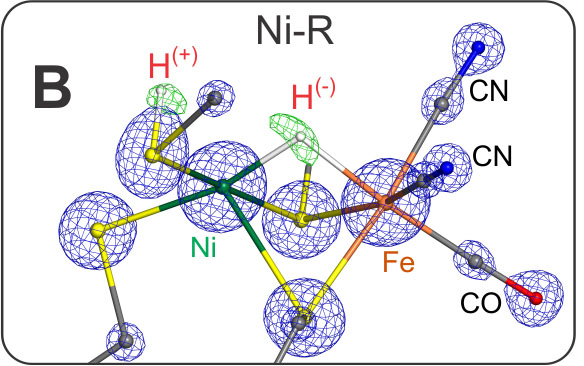

The active species is Ni-SI_a, a diamagnetic complex, Ni(II)Fe(II), with an open bridge between nickel and iron - prepared structurally and electronically to take up H₂. Ni-SI_a has been characterized using FTIR and Mössbauer spectroscopy [13]. This species attaches dihydrogen to yield Ni-R. We have obtained an ultrahigh resolution X-ray crystallographic structure (0.89 Å resolution) [23] of Ni-R in single crystals of the [NiFe] hydrogenase from Desulfovibrio vulgaris Miyazaki F, in which the product of heterolytic splitting of H₂ (H⁺ and H^-) could directly be identified; the hydride is sitting in the bridge between Ni and Fe (closer to Ni) and the proton is attached to the sulfur of one of the terminal cysteines next to the putative proton transfer canal. Furthermore, over 90% of the other hydrogens at ligating cysteines and surrounding amino acids near the active center could be detected including some water molecules.

In this structure the CO and CN- ligands could be distinguished for the first time and the proton transfer channel mapped out. Furthermore, the hydrogen bond network is available in unprecedented precision since the crucial hydrogens could directly be seen in many cases. The loss of an electron and a proton leads to Ni-C that only carries the hydride bridge, as shown in our earlier EPR work [25] and corroborated by DFT calculations on a large model of the active site together with the Neese group [26]. Ni-C is converted back to Ni-SI_a by loss of a proton and an electron, most probably in two steps (via a Ni-L like state). The sequence of these PCET reactions is not yet fully elucidated; it may involve several intermediates, (Ni-L and Ni-R states). The reductive activation of the oxidized state (Ni-B/Ni-A) to Ni-SI_a is done by loss of water (protonation of the OH^- bridge, see Figure 3). The spectroscopic signatures of the two oxidized states present in standard [NiFe] hydrogenases could also be explained by EPR and FTIR experiments together with QC models [21].

[FeFe] Hydrogenase: As discussed above the catalytic H₂ splitting and H₂ formation in [NiFe] hydrogenases is performed by the nickel ion aided by a terminal cysteine sulfur acting as a base. In the [FeFe] hydrogenases an iron ion is employed in concert with a special azadithiolate ligand bridging the two irons, in which the nitrogen is functioning as a base (see Figure 4). The existence of the nitrogen, first shown by pulse EPR and ENDOR in our group [27], was finally proven by the insertion of several biomimetic complexes into the apo-protein of bacterial and algal [FeFe] hydrogenases. This seminal work has been done together with M. Fontecave (Paris), V. Artero (Grenoble) and T. Happe (Bochum) and was published in 2013 [28, 29]. These first experiments on the artificial maturation of [FeFe] hydrogenases had far-reaching consequences for hydrogenase research, since the observed spontaneous cluster assembly could be used for obtaining larger amounts of hydrogenases, for isotopic labeling and changing metals and/or substituents or ligands, and to this end obtaining improved properties and function of the hydrogenase hybrids. Furthermore, the results could offer pathways to probe the theory of geobiochemical evolution of the hydrogenases and other related enzymes.

In Figure 4 a series of compounds with changed ligand sphere is shown that could be incorporated into the apo-protein. It is interesting that all complexes showed much lower activity than the native enzyme both for H₂ oxidation and production; only the compound with one instead of two CN- ligands attained 50% activity of the natural system [30]. In Figure 5 an example is shown demonstrating how specific labeling can lead to new information. Here a hydrogenase with the native cofactor is investigated for which either the [4Fe-4S]H-cluster or the [2Fe]_H-cluster is ⁵⁷Fe labeled. This allows the separate detection and assignment of data from Mössbauer and ⁵⁷Fe EPR/ENDOR spectroscopy for these subsites for different states in the catalytic states [31].

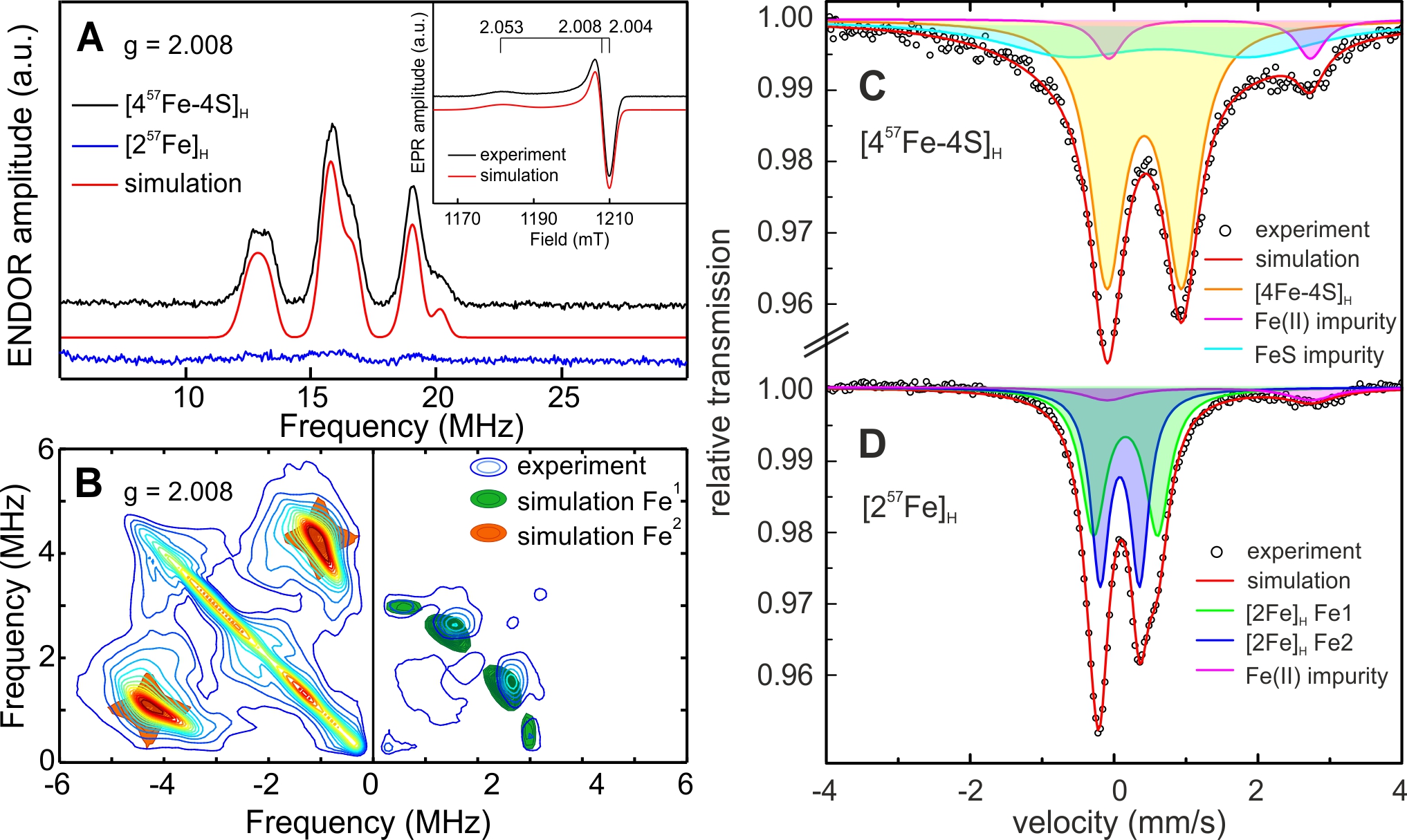

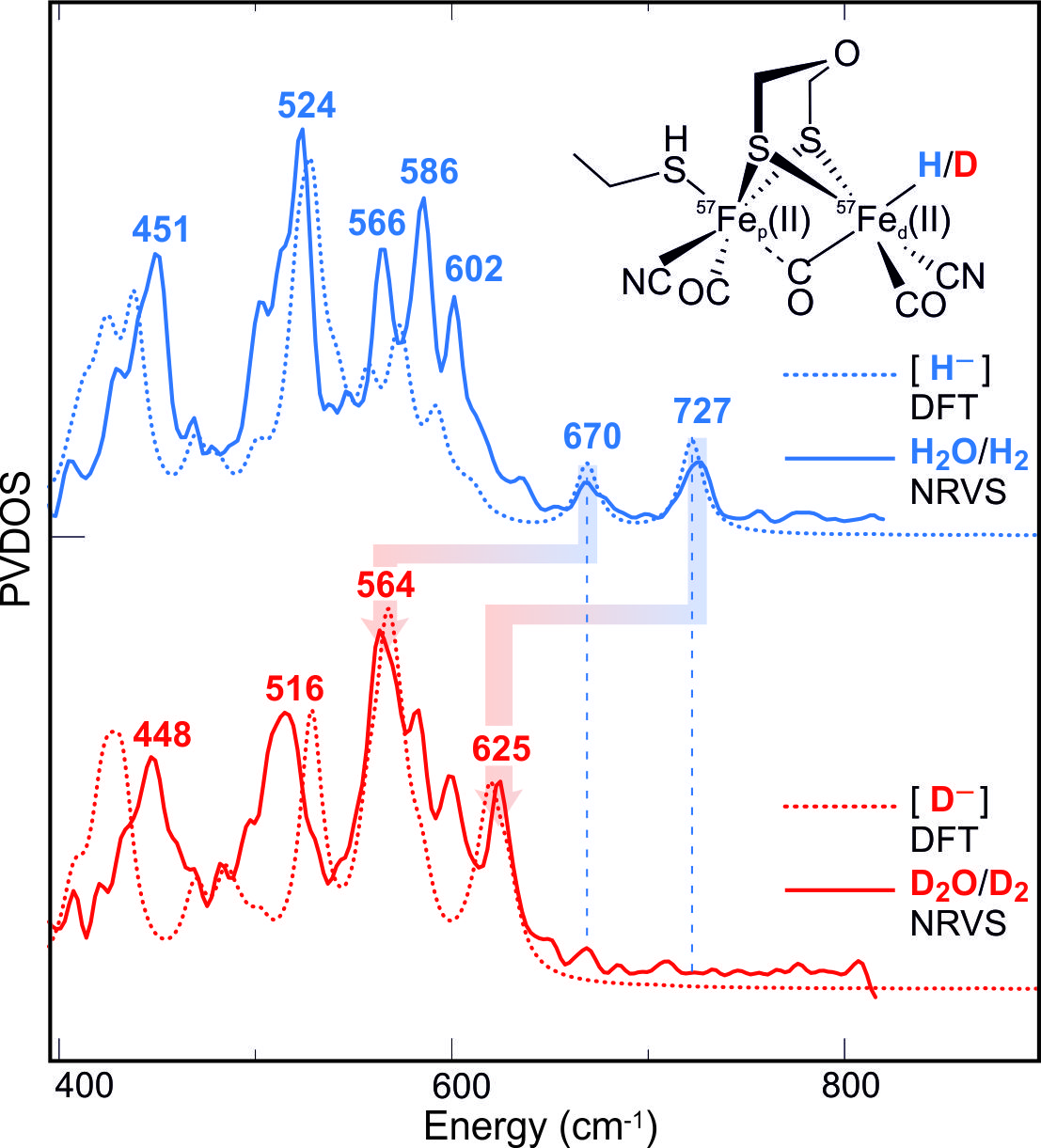

The specific ⁵⁷Fe labeling of the [2Fe]_H-subcluster also allowed the preparation (and stabilization) of the key intermediate that is carrying the hydride end-on at the distal Fe. For the detection vibrational spectroscopy (NRVS) at the synchrotron SPring8 (Hyogo, Japan) was used in collaboration with the group of S. Cramer (UC Davis), employing H/D exchange and a special cofactor that blocks proton transfer and stabilizes the transient intermediate, see Fig. 6 (Reijerse et al., submitted).

Furthermore, the availability of modified (hybrid) [FeFe] hydrogenases opened the possibility to detect and assign the proton nuclei of the active site using paramagnetic NMR, a collaborative research project with C. Farès (KOFO, Mülheim) and C. Luchinat (Florence) (Rumpel et al., in preparation).

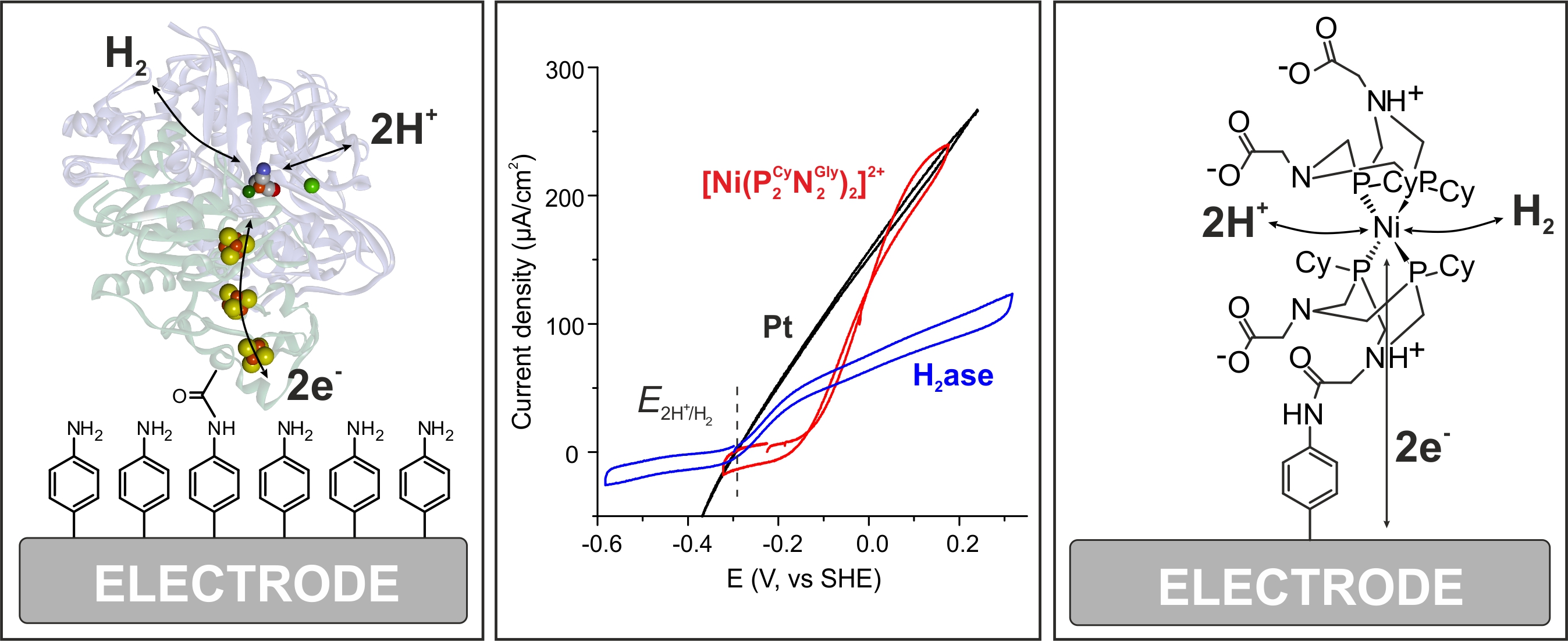

Electrochemistry of Hydrogenases: The oxygen sensitivity of the [NiFe] hydrogenases is a major drawback for practical applications in (bio)fuel cells or water electrolysis. Fortunately, several oxygen tolerant [NiFe] hydrogenases are known, e. g, from Knallgas bacteria. How these are dealing with the attack of O₂ has been a topic of intense research in the past 5 years, see [4] for details. Together with the group of W. Schuhmann (RUB) we could show that a special designed smart matrix (a viologen-based polymer/hydrogel) is able to protect an embedded O₂-sensitive [NiFe] hydrogenase against oxygen attack and high potential deactivation [15]. This approach therefore eliminates two of the major problems that prevented the use of hydrogenases in biotechnological devices. Recently we could show that such a protection can also be achieved with the much more O2-sensitive [FeFe] hydrogenases [16]. We currently work on active hydrogenase model systems in cooperation with Wendy Shaw (PNNL, USA). In Figure 7 cyclic voltammograms are shown for H₂ reduction on Pt compared with [NiFe] hydrogenase and a model complex both covalently attached in the same way to the electrode. This demonstrates the excellent performance of both the native and model system - depending on experimental conditions [17].

Hydrogenase Model Systems: In recent years we have started to synthesize new structural and functional model systems for [NiFe] and [FeFe] hydrogenases and characterized them (for an overview see section 6 in ref. [4]). Interesting first results were the demonstration of a reversible protonation of sulfur in a NiFe-model, the design of a complex with Ni(low spin) Fe(high spin) and Fe as active site, and also a mono-iron compound with (P^R₂N^R₂)- and Cp*- ligands for H₂ production, for which an Fe-hydride species could be clearly detected and characterized [22]. We have also performed a large number of spectroscopic experiments on hydrogenase model systems of other groups, see [32] for an example.

Wateroxidase

In photosystem II of oxygenic photosynthesis a protein-bound oxygen-bridged Mn4Ca cluster performs the process of light-induced water oxidation in a complex catalytic cycle, thereby releasing molecular oxygen, protons and electrons. The protons are used to form a gradient across the membrane driving ATP production, whereas the electrons are used to form NADPH; with both molecules (ATP, NADPH) subsequently used in the dark reactions (Calvin cycle) to reduce CO₂ to carbohydrates. During water splitting the cluster passes through five intermediate states S₀ to S₄, where the subscript denoted the number of transiently stored oxidizing equivalents.  For many decades, the lack of structural data, the absence of spectroscopic methods with high resolution and sensitivity, and the complexity of the water splitting reaction led to rather slow progress in this highly important research field. With the advent of atomic level X-ray structures in Japan (Shen et al.; Nature, 2011 and 2015), concomitant progress in X-ray spectroscopy and time-resolved X-ray diffraction in USA, and with the development of novel sensitive magnetic resonance techniques here in Mülheim, this field has witnessed an explosion of research activity in recent years. Together with theoretical calculations performed in the Department of Frank Neese an understanding of the process of light-induced water oxidation in Nature is now in sight.

In our department we have used mainly magnetic resonance techniques to study the trapped S-states of the water splitting cycle. Using advanced multifrequency pulse EPR, ENDOR and EDNMR techniques we were able to detect and characterize the flash-generated, freeze-trapped paramagnetic states S₀, S₂ and S₃ (S₁ is diamagnetic and S₄ is a transient state). By a careful analysis – backed up by QC calculations – we determine the site oxidation and spin states of all Mn ions and their spin coupling for all intermediates of the catalytic cycle [18, 19].

The binding of the first substrate water and its incorporation into the Mn-cluster had already been measured by us using magnetically labeled water (H₂¹⁷O) and detection by high field ¹⁷O EDNMR [33]. In more recent work the second water binding event was proposed to take place in the S₂ → S₃ state transition; S₃ is the last metastable intermediate of the complex prior to O-O bond formation [20]. In the S₃ state, the two substrate oxygens are ideally located, bound between two Mn sites, allowing highly efficient O-O bond formation in the final S₄ state (Figure 8). This supports an oxo-oxyl coupling model originally proposed by Per Siegbahn (Stockholm).

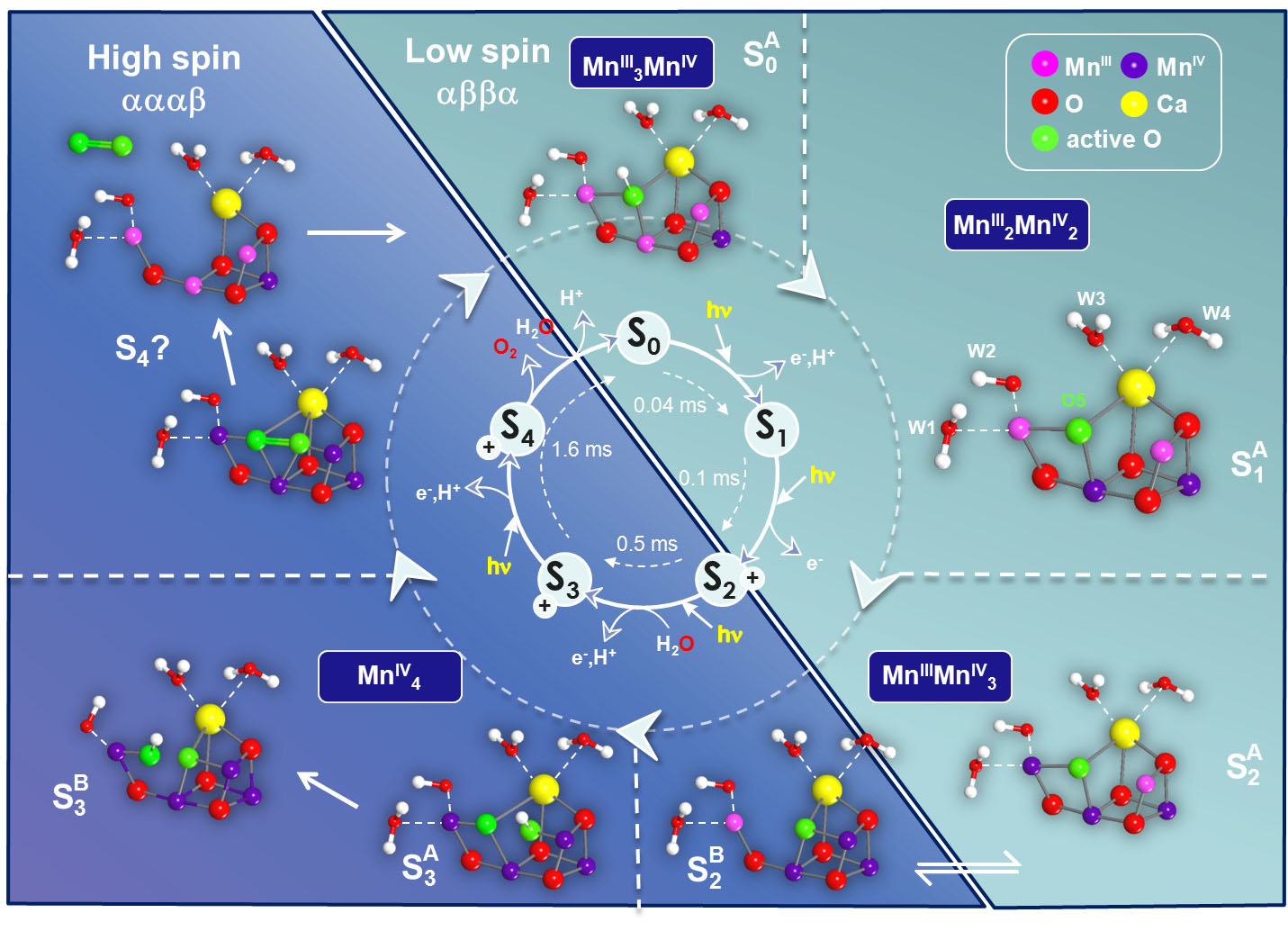

Figure 8 summarizes the collected knowledge about the water oxidation cycle in oxygenic photosynthesis based on our joint spectroscopic and theoretical results in Mülheim. An interesting aspect is that in the S2 state two structural isomers have been found that allow a low-barrier transition from a low-spin S^A₂ (S_tot = 1/2) to a high-spin S^B₂ (S_tot = 5/2) configuration [34]. The two species are in full agreement with known EPR data. The high spin state, which is a consequence of a closed cubane configuration with the dangling Mn(III) having a vacant coordination site, enables formation of the S₃ (Stot

References

[1] Cox, N., Pantazis, D. A., Neese, F. and Lubitz, W. (2015) Artifical Photosynthesis: Understanding Water Splitting in Nature

. Interface Focus, 5, 20150009 dx.doi.org/10.1098/rsfs.2015.0009.

[2] Pérez-Navarro, M., Neese, F., Lubitz, W., Pantazis, D. A. and Cox, N. (2016) Recent Developments in Biological Water Oxidation. Curr. Opin. Chem. Biol., 31, 113.

[3] Cox, N. and Lubitz, W. (2013) Molecular Concepts of Water Splitting: Nature's Approach. Green, De Gruyter Bookshelf, 3, 235.

[4] Lubitz, W., Ogata, H., Rüdiger, O. and Reijerse, E. (2014) Hydrogenases. Chem. Rev., 114, 4081.

[5] Wang, F., Büchel, R., Savitsky, A., Zalibera, M., Widmann, D., Pratsinis, S. E., Lubitz, W. and Schüth, F. (2016) In situ EPR Study of the Redox Properties of CuO–CeO₂ Catalysts for Preferential CO Oxidation (PROX). ACS Catal., 6, 3520.

[6] Cox, N., Lubitz, W. and Savitsky, A. (2013) W-Band ELDOR-Detected NMR (EDNMR) Spectroscopy as a Versatile Technique for the Characterization of Transition Metal-Ligand Interactions. Mol. Phys., 111, 2788.

[7] Nalepa, A., Möbius, K., Lubitz, W. and Savitsky, A. (2014) High-Field ELDOR-Detected NMR Study of a Nitroxide Radical in Disordered Solids: Towards Characterization of Heterogeneity of Microenvironments in Spin-Labeled Systems. J. Magn. Res., 242, 203.

[8] Cox, N., Nalepa, A., Pandelia, M.-E., Lubitz, W. and Savitsky, A. (2015) Pulse Double-Resonance EPR Techniques for the Study of Metallobiomolecules. In: Methods in Enzymology, P. Z. Qin and K. Warncke (eds.), Elsevier, Oxford, pp. 211-249.

[9] Rumpel, S., Siebel, J. F., Farès, C., Duan, J., Reijerse, E., Happe, T., Lubitz, W. and Winkler, M. (2014) Enhancing Hydrogen Production of Microalgae by Redirecting Electrons from Photosystem I to Hydrogenase. Energy Environ. Sci., 7, 3296.

[10] Rumpel, S., Siebel, J. F., Diallo, M., Farès, C., Reijerse, E. and Lubitz, W. (2015) Structural Insight into the Complex of Ferredoxin and [FeFe] Hydrogenase from Chlamydomonas reinhardtii. ChemBioChem., 16, 1663.

[11] Ogata, H., Krämer, T., Wang, H., Schilter, D., Pelmenschikov, V., van Gastel, M., Neese, F., Rauchfuss, T. B., Gee, L. B., Scott, A. D., Yoda, Y., Tanaka, Y., Lubitz, W. and Cramer, S. P. (2015) Hydride Bridge in [NiFe]-hydrogenase Observed by Nuclear Resonance Vibrational Spectroscopy. Nat. Commun., 6, 7890. doi: 10.1038/ncomms8890 (2015)

[12] Wang, H., Yoda, Y., Ogata, H., Tanaka, Y. and Lubitz, W. (2015) A Strenuous Experimental Journey Searching for Spectroscopic Evidence of a Briding Nickel-iron-hydride in [NiFe] Hydrogenase. J. Synchrotron Rad., 22, 1334.

[13] Roncaroli, F., Bill, E., Friedrich, B., Lenz, O., Lubitz, W. and Pandelia, M.-E. (2015) Cofactor Composition and Function of a H₂-sensing Regulatory Hydrogenase as Revealed by Mössbauer and EPR Spectroscopy. Chem. Sci., 6, 4495.

[14] Hugenbruch, S., Shafaat, H. S., Krämer, T., Delgado-Jaime, M. U., Weber, K., Neese, F., Lubitz, W. and DeBeer, S. (2016) In Search of Metal Hydrides: An X-ray Absorption and Emission Study of [NiFe] Hydrogenase Model Complexes. Phys. Chem. Chem. Phys., 18, 10688.

[15] Plumeré, N., Rüdiger, O., Oughli, A. A., Williams, R., Vivekananthan, J., Pöller, S., Schuhmann, W. and Lubitz, W. (2014) A Redox Hydrogel Protects Hydrogenase from High-potential Deactivation and Oxygen Damage. Nat. Chem., 6, 822.

[16] Oughli, A. A., Conzuelo, F., Winkler, M., Happe, T., Lubitz, W., Schuhmann, W., Rudiger, O. and Plumere, N. (2015) A Redox Hydrogel Protects the O₂-Sensitive [FeFe]-Hydrogenase from Chlamydomonas reinhardtii from Oxidative Damage. Angew. Chem., Int. Ed., 54, 12329.

[17] Rodriguez-Macià, P., Dutta, A., Lubitz, W., Shaw, W. and Rüdiger, O. (2015) Direct Comparison of the Performance of a Bio-inspired Synthetic Nickel Catalyst and a [NiFe]-Hydrogenase, Both Covalently Attached to Electrodes. Angew. Chem., Int. Ed., 54, 12303.

[18] Krewald, V., Retegan, M., Cox, N., Messinger, J., Lubitz, W., DeBeer, S., Neese, F. and Pantazis, D. (2015) Metal Oxidation States in Biological Water Splitting. Chem. Sci., 6, 1676.

[19] Krewald, V., Retegan, M., Neese, F., Lubitz, W., Pantazis, D. A. and Cox, N. (2016) Spin State as a Marker for the Structural Evolution of Nature’s Water-Splitting Catalyst. Inorg. Chem., 55, 488.

[20] Cox, N., Retegan, M., Neese, F., Pantazis, D. A., Boussac, A. and Lubitz, W. (2014) Electronic Structure of the Oxygen-evolving Complex in Photosystem II Prior to O-O Bond Formation. Science, 345, 804.

[21] Barilone, J. L., Ogata, H., Lubitz, W. and van Gastel, M. (2015) Structural Differences Between the Active Sites of the Ni-A and Ni-B States of the [NiFe] Hydrogenase: An Approach by Quantum Chemistry and Single Crystal ENDOR Spectroscopy. Phys. Chem. Chem. Phys., 17, 16204.

[22] Weber, K., Weyhermüller, T., Bill, E., Erdem, Ö. F. and Lubitz, W. (2015) Design and Characterization of Phosphine Iron Hydrides: Toward Hydrogen-producing Catalysts. Inorg. Chem., 54, 6928.

[23] Ogata, H., Nishikawa, K. and Lubitz, W. (2015) Hydrogens Detected by Subatomic Resolution Protein Crystallography in a [NiFe] Hydrogenase. Nature, 520, 571.

[24] Decaneto, E., Vasilevskaya, T., Kutin, Y., Ogata, H., Grossman, M., Sagi, I., Havenith, M., Lubitz, W., Thiel, W. and Cox, N. (2017) The Active Site of the Membrane Type-I Matrix Metalloproteinase: Enzyme Regeneration and the Interplay of Solvent Water. Chem. Sci., accepted,

[25] Brecht, M., van Gastel, M., Buhrke, T., Friedrich, B. and Lubitz, W. (2003) Direct Detection of a Hydrogen Ligand in the [NiFe] Center of the Regulatory H₂-sensing Hydrogenase from Ralstonia eutropha in Its Reduced State by HYSCORE and ENDOR Spectroscopy. J. Am. Chem. Soc., 125, 13075.

[26] Krämer, T., Kampa, M., Lubitz, W., van Gastel, M. and Neese, F. (2013) Theoretical Spectroscopy of the Ni^II Intermediate States in the Catalytic Cycle and the Activation of [NiFe] Hydrogenase. ChemBioChem, 14, 1898.

[27] Silakov, A., Wenk, B., Reijerse, E. and Lubitz, W. (2009) ¹⁴N HYSCORE Investigation of the H-Cluster of [FeFe] Hydrogenase: Evidence for a Nitrogen in the Dithiol Bridge. Phys. Chem. Chem. Phys., 11, 6592.

[28] Berggren, G., Adamska, A., Lambertz, C., Simmons, T. R., Esselborn, J., Atta, M., Gambarelli, S., Mouesca, J. M., Reijerse, E., Lubitz, W., Happe, T., Artero, V. and Fontecave, M. (2013) Biomimetic Assembly and Activation of [FeFe]-Hydrogenases. Nature, 499, 66.

[29] Esselborn, J., Lambertz, C., Adamska-Venkatesh, A., Simmons, T., Berggren, G., Noth, J., Siebel, J., Hemschemeier, A., Artero, V., Reijerse, E., Fontecave, M., Lubitz, W. and Happe, T. (2013) Spontaneous Activation of the [FeFe]-Hydrogenases by an Inorganic [2Fe] Active Site Mimic. Nat. Chem. Biol., 9, 607.

[30] Siebel, J. F., Adamska-Venkatesh, A., Weber, K., Rumpel, S., Reijerse, E. J. and Lubitz, W. (2015) Hybrid [FeFe]-hydrogenases with Modified Active Sites Show Remarkable Residual Enzymatic Activity. Biochemistry, 54, 1474.

[31] Gilbert-Wilson, R., Siebel, J. F., Adamska-Venkatesh, A., Pham, C. C., Reijerse, E., Wang, H., Cramer, S. P., Lubitz, W. and Rauchfuss, T. B. (2015) Spectroscopic Investigations of [FeFe] Hydrogenase Maturated with [⁵⁷Fe₂(adt)(CN)₂(CO)₄]^2-. J. Am. Chem. Soc., 137, 8998.

[32] Chambers, G. M., Huynh, M. T., Li, Y., Hammes-Schiffer, S., Rauchfuss, T. B., Reijerse, E. and Lubitz, W. (2016) Models of the Ni-L and Ni-SI_a States of the [NiFe]-Hydrogenase Active Site. Inorg. Chem., 55, 419.

[33] Rapatskiy, L., Cox, N., Savitsky, A., Ames, W. M., Sander, J., Nowaczyk, M. M., Rögner, M., Boussac, A., Neese, F., Messinger, J. and Lubitz, W. (2012) Detection of the Water Binding Sites of the Oxygen-Evolving Complex of Photosystem II Using W-Band ¹⁷O ELDOR-Detected NMR Spectroscopy. J. Am. Chem. Soc., 134, 16619.

[34] Pantazis, D. A., Ames, W., Cox, N., Lubitz, W. and Neese, F. (2012) Two Interconvertible Structures that Explain the Spectroscopic Properties of the Oxygen-Evolving Complex of Photosystem II in the S₂ State. Angew. Chem., Int. Ed., 51, 9935.

full publications Researcher ID

• Französisch-Deutscher Alexander von Humboldt, Gay Lussac Forschungspreis, April 1995
• Wilhelm-Klemm-Medaille, Gesellschaft Deutsche Chemiker, 2000
• John-Bailar-Medaille, University of Illinois, 2000
• Centenary Medal, Royal Society of Chemistry (London), 2002
• American Chemical Society Award in Inorganic Chemistry, 2006
• Ruhrpreis, 2005

• Gesellschaft Deutscher Chemiker
• Deutsche Akademie der Naturforscher, Leopoldina
• Auswärtiges  Mitglied  der Chemical Research Society of India
• Mitglied des Auswahlgremiums des Otto Hahn-Preises  (Gesellschaft Deutscher Chemiker; Stadt Frankfurt)
• Vorsitzender des Gremiums zur Auswahl des Alfred-Stock-Gedächtnispreises  (Gesellschaft  Deutscher Chemiker)
• Fachgutachter der Deutschen Forschungsgemeinschaft,  8 Jahre
• Mitglied des Heisenbergausschusses, 6 Jahre

The research of my group focuses on two areas of Inorganic Chemistry, namely Coordination Chemistry of Transition Metal Ions and Bioinorganic Chemistry.

Coordination Chemistry

We continue to extensively study the coordination chemistry of organic p radical ligands with paramagnetic transition metal ions. The main focus is the correct description of the electronic structure of compounds containing open-shell organic ligands and paramagnetic metal ions. In a very simplified picture we have to discern between the following two possibilities:

Mⁿ⁺ — L   or   M^(n-1)+ — L^•

(1)                          (2)

The question arises if the two structures (1) and (2) represent

a) two mesomeric resonance structures of a single electronic ground state configuration or

b) two distinctly different ground states with differing chemical reactivities(equilibrium).

We have developed spectroscopic and theoretical methodology (in collaboration with F. Neese) to answer such questions. In fact, computational chemistry has been found to be an extremely powerful tool for the discovery of coordinated radicals. Broken symmetry DFT calculations of the electronic structure of a given compound and calculations of their spectroscopic properties(UV-vis IR-, RR-, EPR-, and Mössbauer spectroscopy) allow to solve complicated electronic structure problems.

Two examples may illustrate this approach: The neutral tris(benzene–1,2-dithiolato)chromium complex is a diamagnetic molecule with a S=0 ground state. There are two extreme electronic structures conceivable: [Cr^VI(bdt^2-)3]⁰ with a central Cr(VI) ion (d⁰, S_Cr=0) and three closed-shell dianionic, diamagnetic (bdt)^2-(S_L=0) ligands or, alternatively the complex could possess a central paramagnetic Cr(III) ion (d³, S_Cr=3/2) and three paramagnetic monoanionic pi-radical ligands (bdt•)^1-(S_L=1/2) the spins of which couple intramolecularly antiferromagnetically yielding the observed S=0 ground state. It is possible to calculate both electronic structures: with

a) a spin-restricted closed-shell S=0 solution or

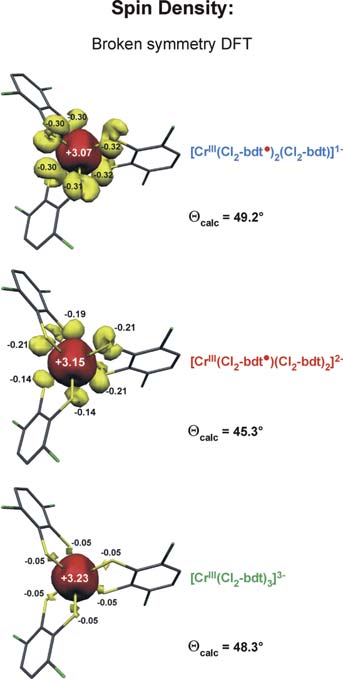

b) a broken symmetry spin unrestricted Kohn-Sham DFT solution BS(3,3).

It was found that the latter solution is ~20 kcal/mol lower in energy than the former. Thus the [Cr^III (bdt•) ₃]⁰ formulation represents the correct electronic structure and not [Cr^VI (bdt)₃]⁰ (Fig. 1) Experimentally this can be proven by X-ray absorption spectroscopy (measuring CrK-edge and S K-edge energies).

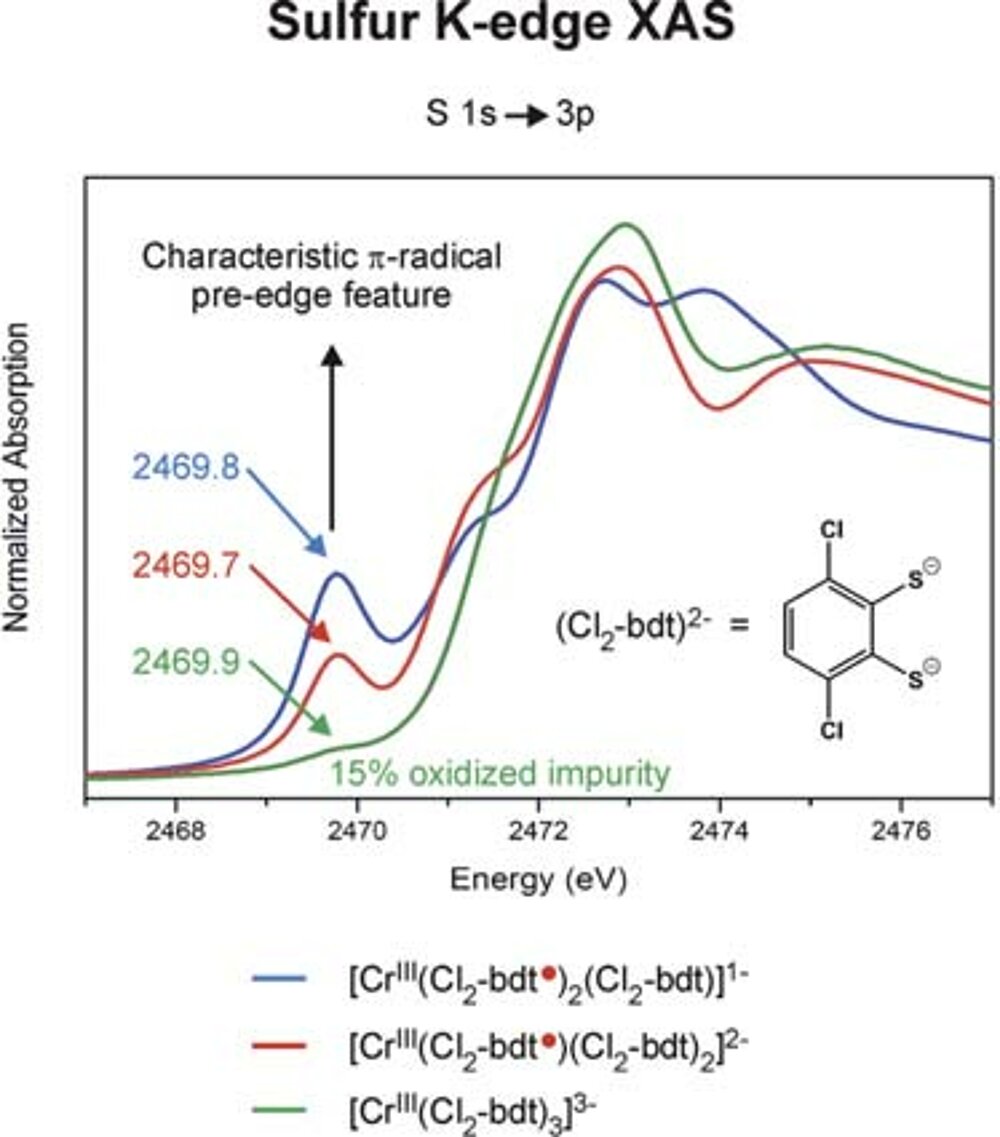

We have established a very close and intense collaboration between Professor Serena DeBeer George of the Stanford Synchrotron Laboratory (SLAC) and our laboratory in Mülheim. Fig. 2 shows the S K-edge spectra of the electron transfer series: [Cr^III(bdt₃)]^3-/2-/1- where the trianion [Cr^III(bdt)₃]^3-(S=3/2) consists of three (bdt)^2-ligands whereas the dianion contains a single pi-radical anion[Cr^III(bdt•)(bdt)_2-]^2-(S=1) and the monoanion [Cr^III(bdt•)₂(bdt)^1-(S=1/2) consists of two (bdt•)^1- radicals and one closed-shell (bdt)^2-. The neutral complex consists of three (bdt•)^1- monoanions and a central Cr^III ion. A characteristic pi-radical pre-edge feature has been identified (of varying intensity) at 2468.8 eV for the mono- and dianion but not for the trianion. Broken symmetry DFT calculations shown in Fig. 3 beautifully confirm these results.

In an extended program we have investigated and successfully determined the electronic structures of such [ML₃]ⁿ electron transfer series of V, Mo, W, Re.

A second example may illustrate the electronic structure problem in organometallic chemistry. [Ni(COD)₂]⁰(COD=cyclooctadiene) is a diamagnetic molecule containing two neutral COD ligands and a central diamagnetic Ni⁰ ion(d₁₀, S^Ni=0). Reaction of this species with alpha-diimines(L1) or 1,2-diketones (L2) produces diamagnetic molecules [Ni(COD) (L1,2)]⁰ which in the past have been described as classic Ni⁰ (d¹⁰) complexes with a neutral alpha-diimine or 1,2-diketone ligand.

We have established that both the alpha-diimines and the 1,2-diketones are redox-noninnocent ligands which can exist in three oxidation levels as

a) a neutral ligand (L_1,2) and

b) a monoanionic pi radical (L•_1,2)^1-, and

c) a diamagnetic dianion (L^Red)^2-.

Thus the above diamagnetic complexes can have three different electronic structures:[Ni⁰(COD)(L_1,2)]⁰, [Ni^I(COD)(L•_1,2)]⁰, or [Ni^II(COD)(L_1,2^Red)]⁰.

We have established by computational chemistry and spectroscopy that they are in fact singlet diradicals with a) central Ni^I ion (d⁹, S_Ni=1/2) and a pi-radical monoanion(L•_1,2)^1- which couple antiferromagnetically: S_t=0. This discovery has wide implications in organometallic chemistry. In a third project – in a collaboration with Professor P.Chirik (Cornell University) and funded by the NSF (National Science Foundation, U.S.A.) and the DFG – we investigate the correlation of established electronic structures of some (bis(imino)pyridine) iron complexes and their reactivity. These ligands represent another class of redox-noninnocent ligands which can exist as a neutral species, and as mono-, di-, or trianion when coordinated to a transition metal ion.

Bioinorganic Chemistry

It is well-established that more than one half of all known enzymes are metalloproteins containing one or more transition metal ions in their respective active site (V, [Cr], Mn,Fe, Co, Ni, Cu, Zn, Mo, or W). It is our philosophy that an understanding of their reactivity can only be achieved ift he underlying coordination chemistry (geometry, electronic structure, etc.) is unraveled for all intermediates in the respective catalytic cycle.

We have continued our efforts to synthesize tetranuclear manganese complexes which might oxidize water as model compounds for the water oxidizing center (WOC) in photosystem II.

4hν + 2H₂O   4H⁺ + 4e + O₂

In this area of research a close and successful collaboration between our group and that of Professor Lubitz has been further developed. Thus, we have investigated in great depth the EPR and ENDOR signatures of Mn^IIIMn^IVdimers in Nature (catalases, PSII) and models.

The active sites of non-heme iron metalloenzymes containing one or more iron ions continue to fascinate my group. So-called high-valent iron compounds, where the formal or spectroscopic oxidation state of the central iron ion is > +III, are still of main interest.
